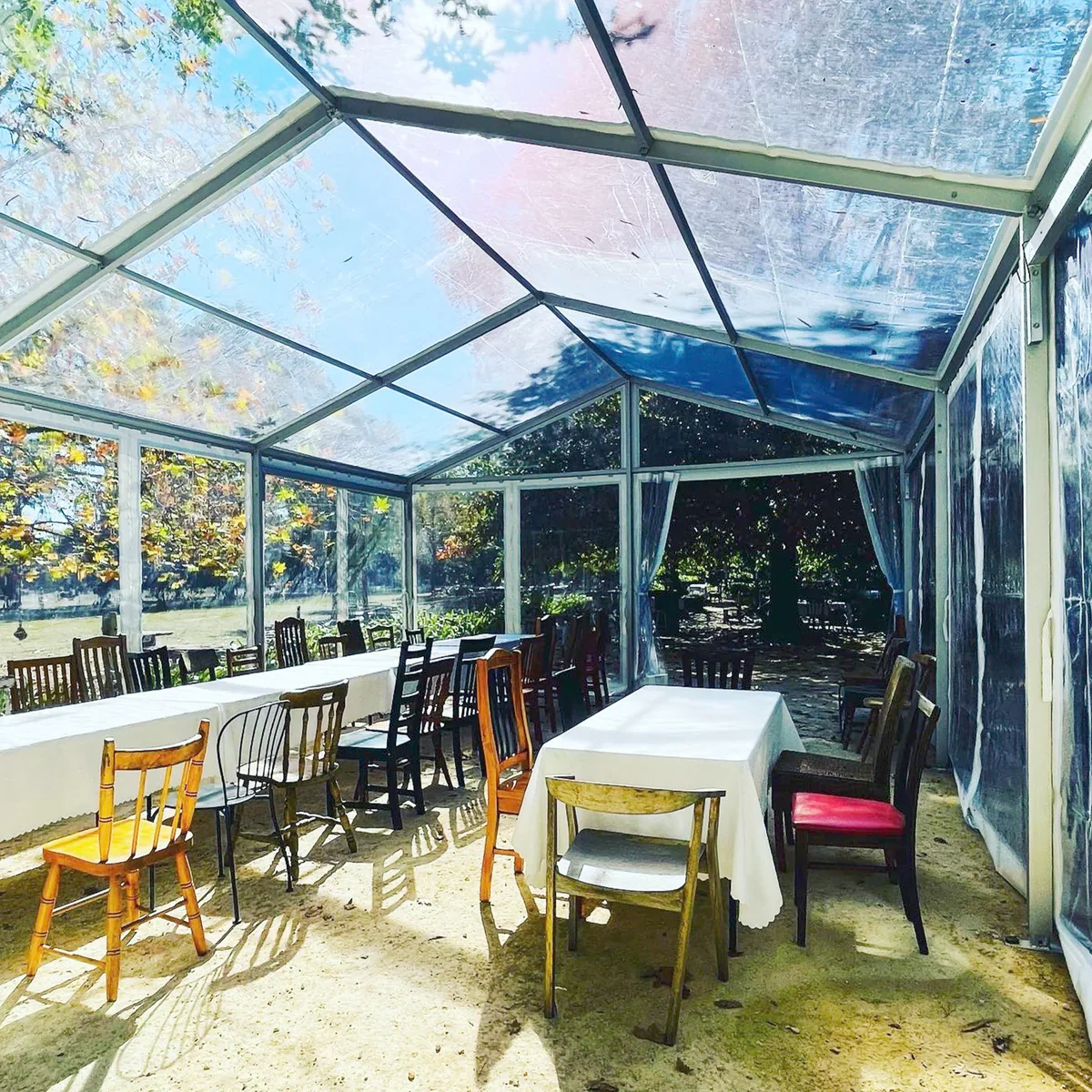

26' Wide Clear Span A-Frame Tent, Aluminum Frame
26' Width
The 26' Wide Clear Span A-Frame Tent is a high-performance event shelter designed for spacious, unobstructed coverage. Featuring a durable aluminum frame and clear-span construction, it provides superior stability and versatility for any occasion. Ideal for corporate events, weddings, and large gatherings. Enjoy free shipping and extended warranties. Upgrade your venue today!
Specification Sheet > Instruction PDF > Product Comparison > PVC Fire Retardant Certification >
| Clear Span Width | 26' (8m) |
| Eave Height | 8.5′ (2.6m) |
| Frame Profile | 100 x 48 x 3mm (4-channel) |
| Frame Material | Hard pressed extruded aluminum 6061/T6 (13HW) |
| Eave Connectors | Hot-dip galvanized steel insert |
| Roof Fabric | 650GSM White PVC / 950GSM Clear PVC |
| Frame Warranty | Frame 10 Years |
| Roof Warranty | White PVC 5 Years / Clear PVC 2 Years |
Capacity Chart
| Size | Area (sqm) | CocktailStanding | TheatreSeating | Seating Trestle Table | Seating Round Table |
| 26' x 20' | 48 | 85 | 50 | 70 | 55-65 |
| 26' x 40' | 97 | 170 | 100 | 150 | 100-120 |
| 26' x 50' | 121 | 215 | 130 | 185 | 130-150 |
| 26' x 60' | 145 | 260 | 155 | 225 | 155-180 |
This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity which may be different from the numbers we have provided.
Theatre seating
Includes a 3’3” (1m) centre aisle and a 10ft (3m) section at the front for presentation/ceremony
Trestle tables
7’8” (2.4m) Trestle tables seating 8 people each. This number uses the whole marquee; there is no room for anything else, such as a dance floor or buffet tables
Round tables
5’6” (1.8m) Round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else, such as a dance floor or buffet tables etc.
Add-on accessories available (contact us for pricing)
Usage & Engineering Certifications
Clear Span A-Frame Tents are designed as temporary or semi-permanent structures. They meet wind speed requirements for most (though not all) CA locations for semi-permanent installations.
As building codes and regulations vary by site, compliance verification is the customer’s responsibility. Upon request, Clear Span A-Frame Tents can engage an engineer for site-specific analysis.
If no engineering review is requested prior to purchase, they cannot guarantee compliance with local regulations.
Note: Snow loading is not included in engineering analyses. It is the customer’s responsibility to prevent snow or ice accumulation on the tent.
