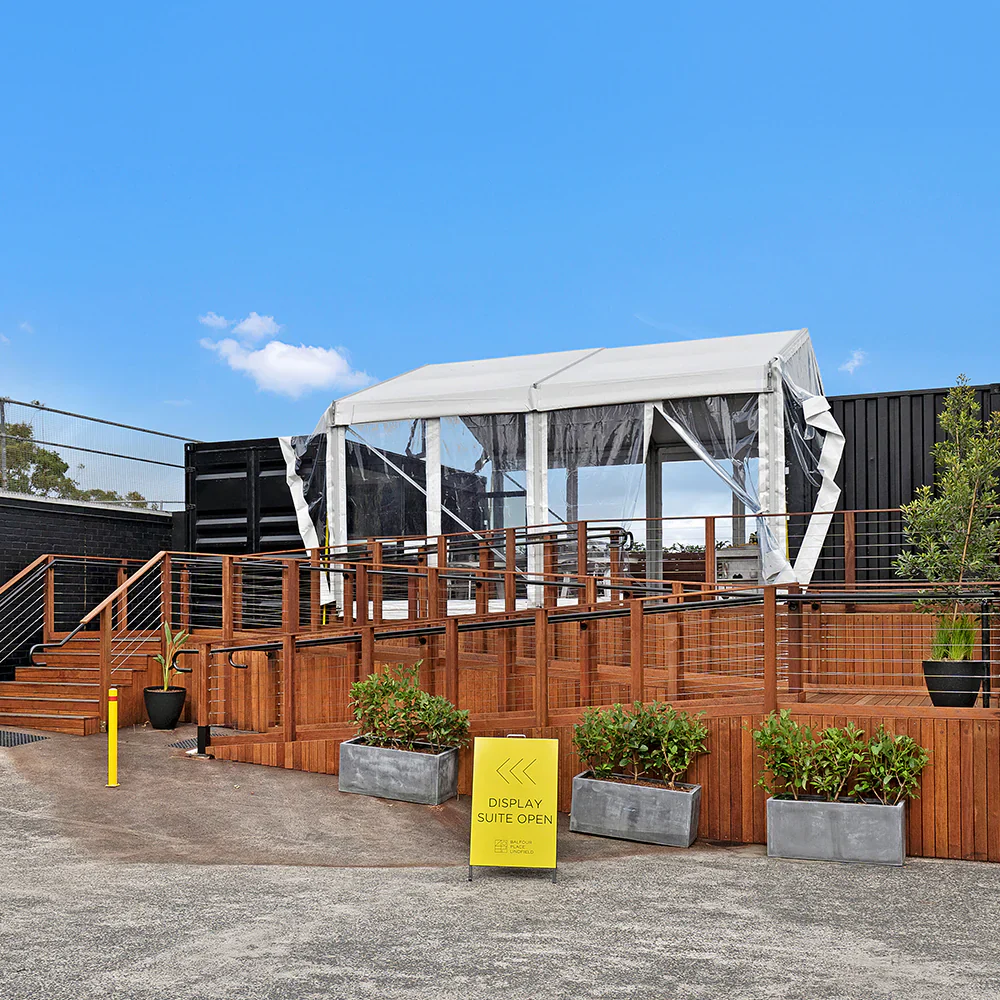

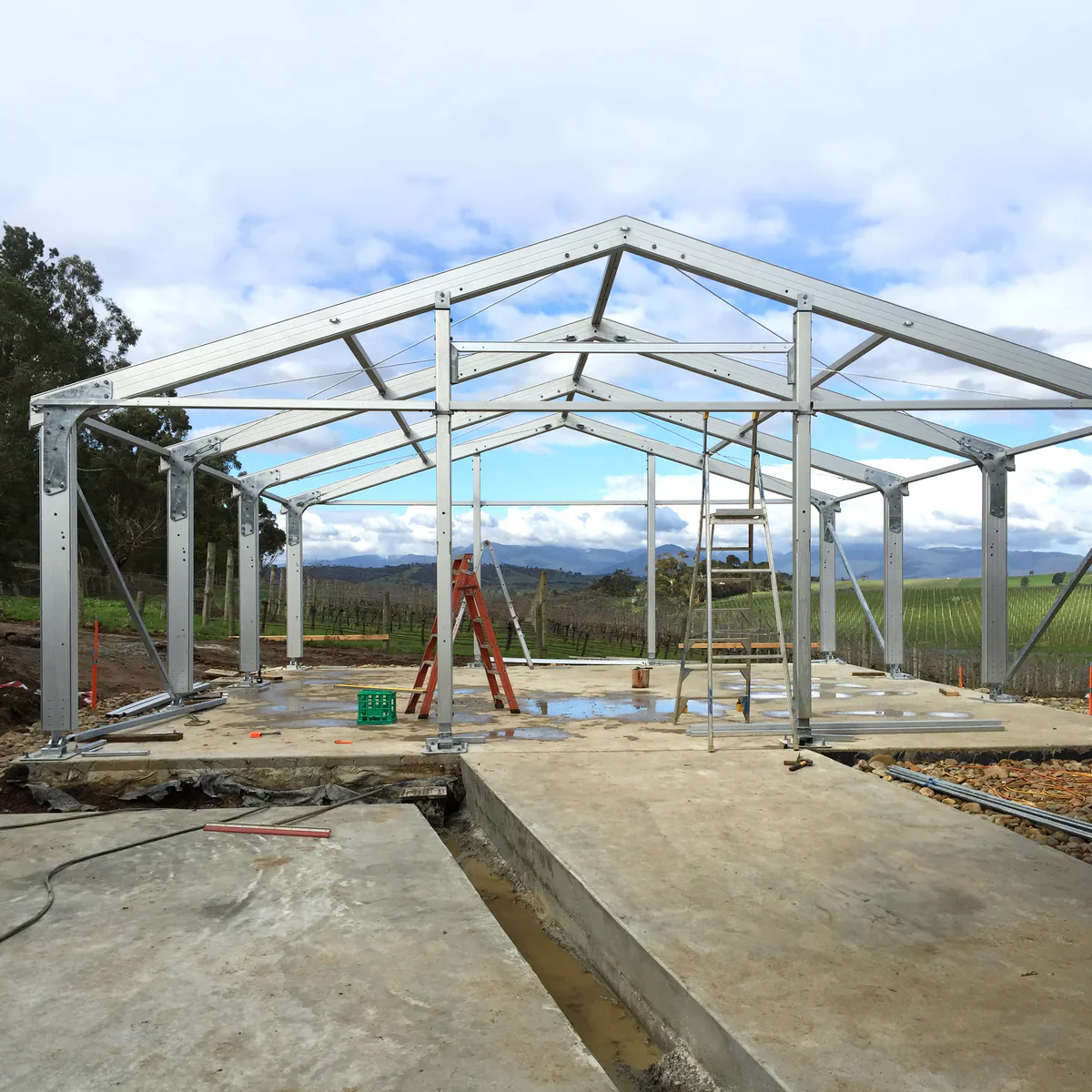

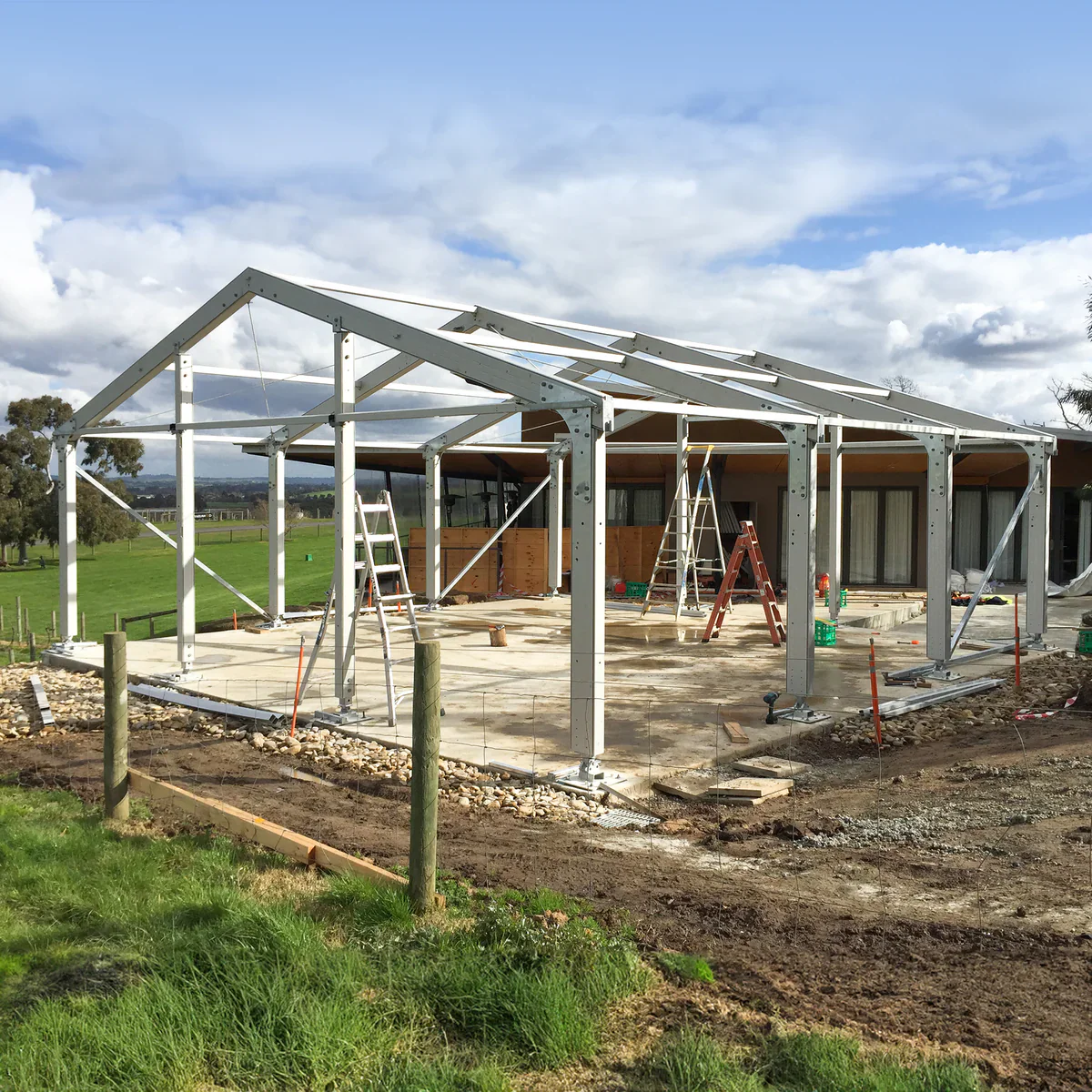

20' Wide Clear Span A-Frame Tent, Aluminum Frame
20' Width
The 20' Wide Clear Span A-Frame Tent is a premium event structure offering expansive coverage and durability. Built with a sturdy aluminum frame and a clear-span design, it provides unobstructed space for various applications. Ideal for weddings, corporate events, and large-scale activations. Enjoy free shipping and extended warranties. Elevate your event setup today!
Specification Sheet > Instruction PDF > Product Comparison > PVC Fire Retardant Certification >
| Clear Span Width | 20' (6m) |
| Eave Height | 8.5′ (2.6m) |
| Frame Profile | 84 x 84 x 3mm (2-channel) |
| Frame Material | Hard-pressed extruded aluminum 6061/T6 (13HW) |
| Eave Connectors | Hot-dip galvanized steel insert |
| Roof Fabric | 650GSM White PVC / 950GSM Clear PVC |
| Frame Warranty | Frame 10 Years |
| Roof Warranty | White PVC 5 Years / Clear PVC 2 Years |
Capacity Chart
| Size | Area (sqm) | CocktailStanding | TheatreSeating | Seating Trestle Table | SeatingRound Table |
| 20' x 20' | 36 | 50 | 24 | 48 | 40-48 |
| 20' x 30' | 54 | 75 | 48 | 72 | 60-72 |
| 20' x 40' | 72 | 100 | 72 | 96 | 80-96 |
| 20' x 50' | 90 | 125 | 96 | 120 | 100-120 |
| 20' x 60' | 108 | 150 | 120 | 144 | 120-144 |
| 20' x 70' | 126 | 175 | 144 | 168 | 140-168 |
This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity, which may be different from the numbers we have provided.
Theatre seating
Includes a 3’3” (1m) centre aisle and a 10ft (3m) section at the front for presentation/ceremony
Trestle tables
7’8” (2.4m) Trestle tables seating 8 people each. This number uses the whole marquee; there is no room for anything else, such as a dance floor or buffet tables
Round tables
5’6” (1.8m) Round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else, such as a dance floor or buffet tables etc.
Add-on accessories available (contact us for pricing)
Usage & Engineering Certifications
Clear Span A-Frame Tents are designed as temporary or semi-permanent structures. They meet wind speed requirements for most (though not all) CA locations for semi-permanent installations.
As building codes and regulations vary by site, compliance verification is the customer’s responsibility. Upon request, Clear Span A-Frame Tents can engage an engineer for site-specific analysis.
If no engineering review is requested prior to purchase, they cannot guarantee compliance with local regulations.
Note: Snow loading is not included in engineering analyses. It is the customer’s responsibility to prevent snow or ice accumulation on the tent.
